Operation of 2205 Duplex Stainless Steel Wet Electrostatic Precipitator for Flue Gas Collection and Treatment at the Front of Phosphorus Chemical Electric Furnace.

The main material of this wet electrostatic demister is 2205 duplex stainless steel. Its technical parameters are as follows: the flue gas volume ≤ 80000 m³/h, the flue gas temperature ≤ 90℃, the working pressure ≤ 7000 Pa, and the designed flow velocity ≤ 1 m/s.The flue gas treated by this wet electrostatic demister is the one from the front of the yellow phosphorus electric furnace, which contains highly corrosive media such as sulfur, phosphorus, arsenic and fluorine.

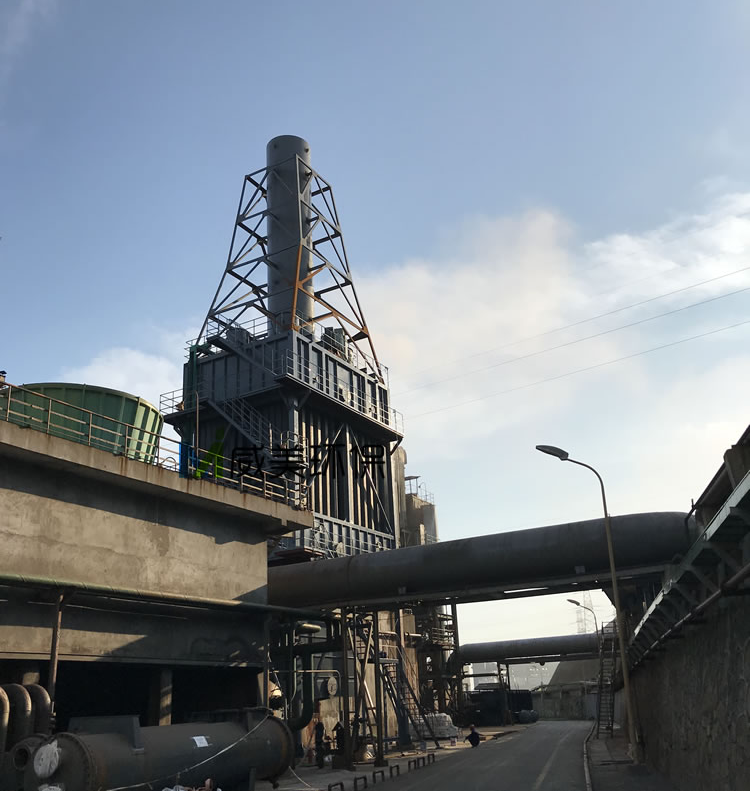

Operation of 2205 Duplex Stainless Steel Wet Electrostatic Precipitator for Phosphorus Chemical Industry

The wet electrostatic precipitator (WESP) made of 2205 material for flue gas collection at the electric furnace front is dispatched by road. The flue gas volume of this WESP is ≤ 80,000 m³/h, the flue gas temperature is ≤ 90℃, the working pressure is ≤ 7,000 Pa, and the designed dust removal flow velocity is ≤ 1 m/s.

Road Dispatch Site of the 2205 Material Wet Electrostatic Precipitator for Flue Gas Collection at the Electric Furnace Front

The flue gas treated by this wet electrostatic precipitator is the flue gas at the yellow phosphorus furnace front, which contains highly corrosive media such as sulfur, phosphorus, arsenic, and fluorine. A flow equalization device is equipped at the inlet of the demister to ensure that the flue gas can flow through the electric field better and more evenly. The material of the flow equalization device must meet the operating environment requirements of the wet flue gas after desulfurization. The power supply of the entire system is designed with a PLC automatic control system, which automatically controls spraying and cleaning. Meanwhile, the PLC system reserves a communication interface, and all data can be uploaded to the DCS control room.

Arrival Site of the 2205 Material Anode Tubes for the Wet Electrostatic Precipitator

A wet electrostatic precipitator (WESP) for tail gas treatment of calcium chloride was recently dispatched by road to a customer in Shandong Province. This unit is a new additional order from the Shandong customer, as the previously purchased WESP for calcium chloride granulation has achieved excellent operational results. We will subsequently follow up on the on-site installation and commissioning progress.

Road Shipment Ready: Shell Section of WESP for Tail Gas Treatment of Calcium Chloride Fully Loaded

Road Shipment Ready: Anode System of WESP for Tail Gas Treatment of Calcium Chloride Fully Loaded

Treatment Effect of WESP for Calcium Chloride Granulation Production Line

Hebei Weimei Environmental Protection is responsible for the supply and installation of the main body of this wet electrostatic precipitator, including the anode system, cathode system, upper and lower air chambers, gas distribution plate, anti-sway frame, high and low voltage electrical equipment, and distribution cabinets. The flue gas treatment capacity of this equipment is ≤ 220,000 m³/h, the flue gas temperature is ＜ 70℃, and the gas inlet mode is the bottom-in and top-out type.

The wet electrostatic precipitator for cyanuric acid flue gas treatment is dispatched by road.

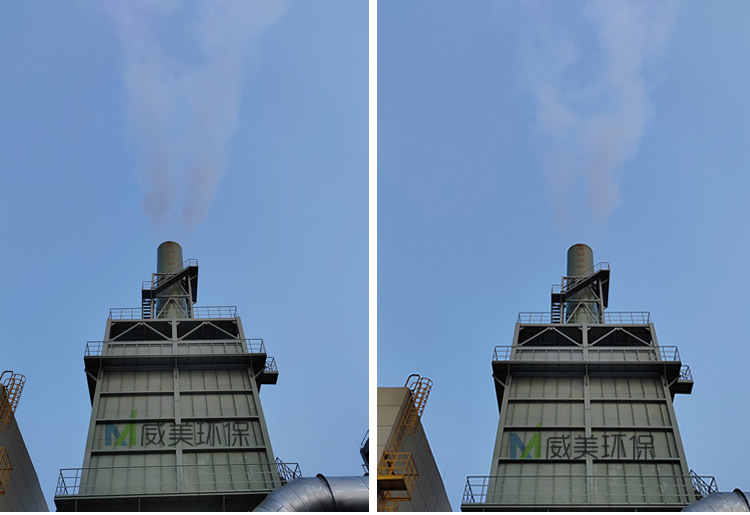

220,000 m³/h Wet Electrostatic Precipitator (WESP) Commissioned and in Operation

Two wet electrostatic precipitators (WESP) with a gas handling capacity of 22,000 m³/h for acid-making tail gas have entered the commissioning phase. The net flow area of tail gas in the anode tubes of this wet electrostatic precipitator and demister is ≥ 10 m². The main body is made of conductive FRP (fiber-reinforced plastic), equipped with an automatic control system. Both the cathode wires and cathode suspension rods are made of Hastelloy C276.

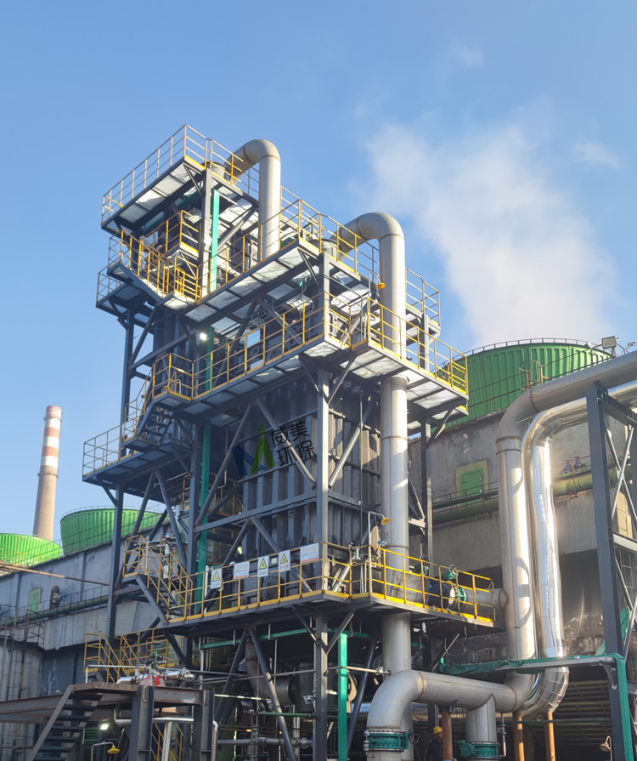

Commissioning Site of 22,000 m³/h Wet Electrostatic Precipitators (WESPs)

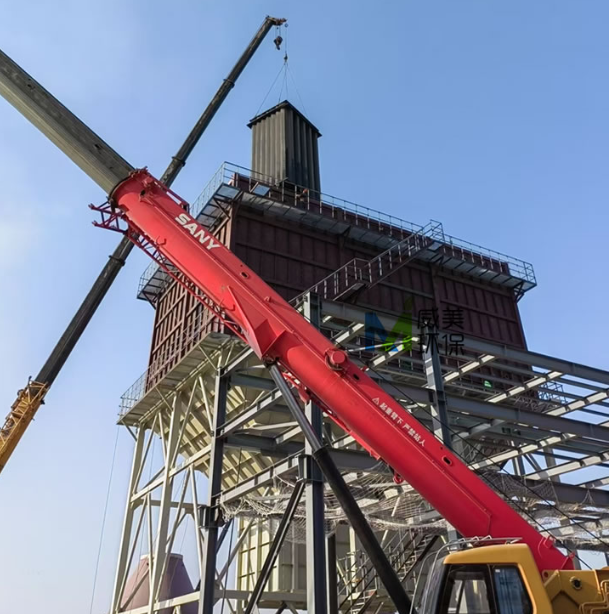

A Set of Installation Photos of 50,000 Nm³/h Wet Electrostatic Precipitator for Yellow Phosphorus Tail Gas and 20,000 Nm³/h Wet Electrostatic Precipitator for Desulfurization Tail Gas.

Hoisting of Anode System of 50,000 Nm³/h Wet Electrostatic Precipitator for Yellow Phosphorus Tail Gas

Hoisting of Anode System of 50,000 Nm³/h Wet Electrostatic Precipitator for Yellow Phosphorus Tail Gas

Hoisting of Frame of 20,000 Nm³/h Wet Electrostatic Precipitator for Desulfurization Tail Gas

The semi-dry process mixing tower, part of the Guizhou 75T stainless steel boiler tail gas treatment system, is currently under fabrication. This tower features a flue gas handling capacity of 30,000–140,000 m³/h, with calcium oxide (CaO) powder as the treating agent. The flue gas residence time is more than 1 second, and the flue gas temperature ranges from 180°C to 200°C. The tower is constructed from 316L stainless steel.

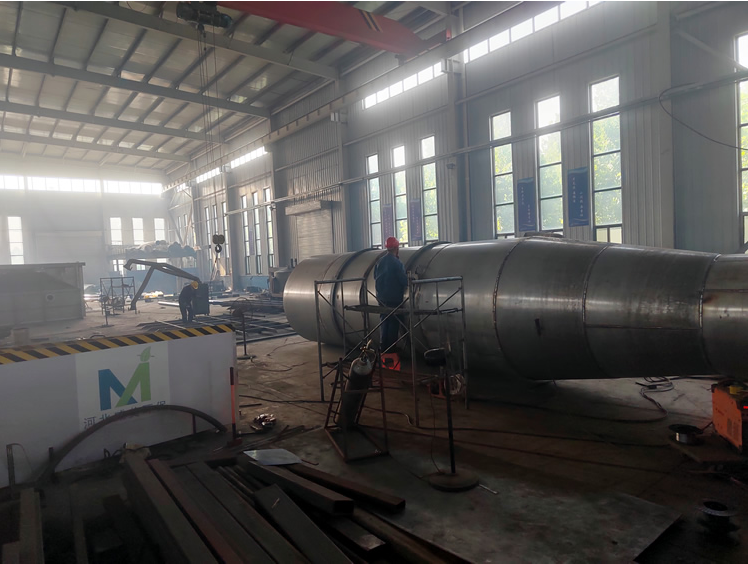

Fabrication of Guizhou 75T Stainless Steel Drying Tower

This wet electrostatic precipitator is designed to remove acid mist from the tail gas discharged after the washing process of the phosphine tail gas incinerator. The main components of the flue gas include water vapor, phosphorus pentoxide (P₂O₅) and phosphine (PH₃), with a gas treatment capacity of 40,000 m³/h.

The equipment supplied by Hebei Weimei includes all the necessary facilities required for the normal operation of the complete set, such as the wet electrostatic precipitator shell (upper gas chamber, lower gas chamber, ash collecting chamber), inlet and outlet matching flanges, anode tubes, cathode wires, counterweights, internal spray system, access doors, explosion-proof openings, etc.

The anode tubes of the wet electrostatic precipitator have passed inspection and are ready for delivery

Material Inspection of the Wet Electrostatic Precipitator

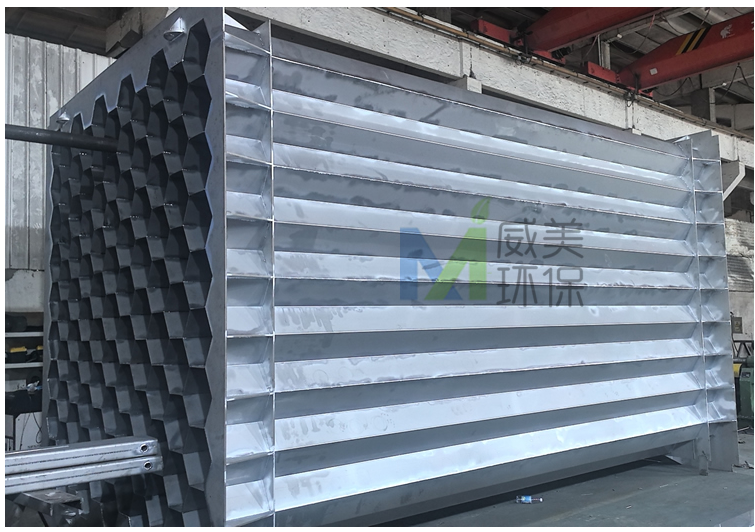

Shell of the Wet Electrostatic Precipitator

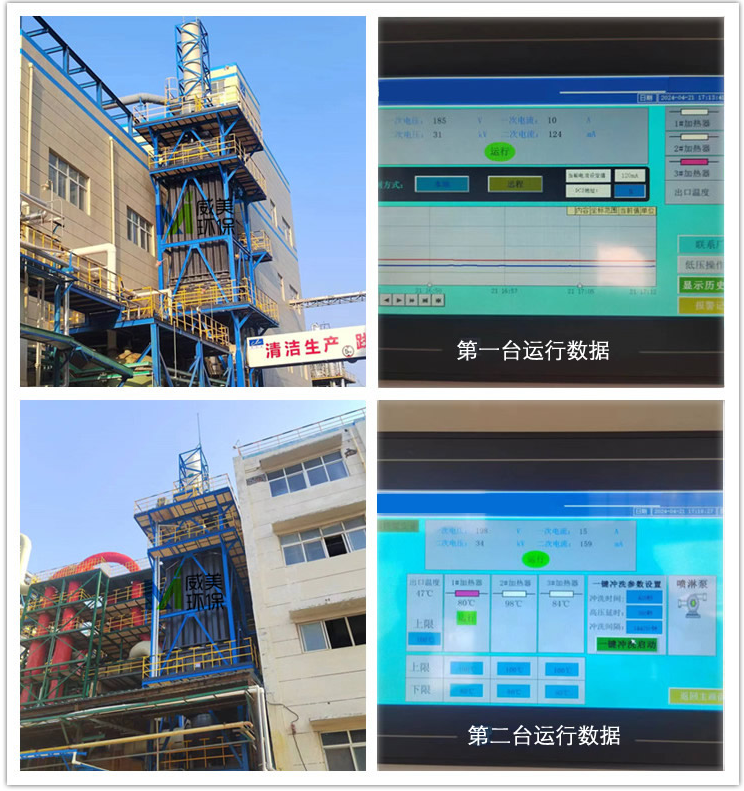

The customer’s products include trichloroisocyanuric acid, sodium dichloroisocyanurate, cyanuric acid, etc., which are used in water treatment and disinfection applications, and are mainly exported to European countries. Installed at the end of the production line, the two wet electrostatic precipitators have already entered the commissioning and operation phase.

Operation of Two Wet Electrostatic Precipitators for Cyanuric Acid Tail Gas Treatment

The 2205 stainless steel anode tubes of the wet electrostatic precipitator for sodium hypophosphite flue gas treatment have passed inspection and are ready for delivery. The following is the inspection process.

Fabrication of 2205 Stainless Steel Anode Tubes for Wet Electrostatic Precipitator Completed

Material Inspection of Anode Tubes for Wet Electrostatic Precipitator (Sodium Hypophosphite Flue Gas Treatment)

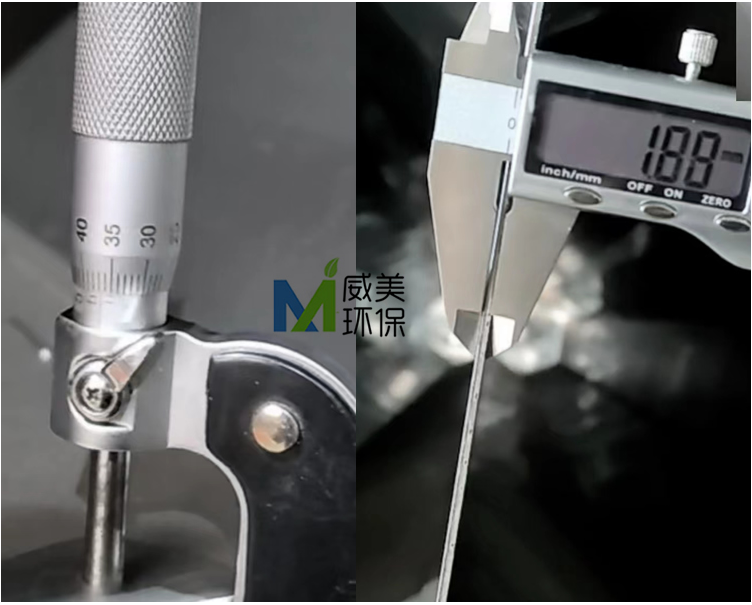

Thickness Inspection of Anode Tubes for Wet Electrostatic Precipitator (Sodium Hypophosphite Flue Gas Treatment)
